FLATLINE OVENS.
HALOGEN IR FLATLINE OVEN
Prime Heat’s FlatLine Ovens are engineered for high-speed, high-precision curing, seamlessly integrating with conveyor systems to deliver consistent, energy-efficient performance. Powered by Halogen Infrared (IR) technology and advanced automation, these ovens optimize heat control, reduce energy consumption, and ensure flawless finishes—every time.
HALOGEN FLATLINE OVEN
- Advanced Halogen (IR) Technology—uses energy efficient halogen bulbs
- Precision Thermal Control holds temperature within ±3°F
- 7” Programmable Color Touchscreen PLC
- IR Sensors with Laser-Guided Accuracy
- Motion-Activated Sensors Conveyor Override System
- Multiple Independent Air and Heat Zones
- VFD-controlled Air Zones
PRODUCT DETAILS
- Energy-efficient halogen bulbs deliver instant heat with minimal power usage.
- Precise Temperature Control: Maintains part temperatures within ±3°F, allowing for optimized curing profiles without over- or under-curing—eliminating curing defects.
- Direct Heat Transfer – Halogen IR emits Short-Wave Infrared energy that penetrates coatings directly, curing from the inside out, unlike convection ovens that heat the surrounding air first.
- Instant Heat-Up – No need for warm-up periods—Halogen elements reach 4,040°F instantly, while gas systems waste time and energy during startup.
- Zero Carbon Emissions – No gas combustion, no VOCs, no hazardous byproducts—a cleaner, safer workplace.
- Smart Automation for Maximum Efficiency:
- 7” Programmable Color Touchscreen PLC—simple, intuitive controls for adjusting cure settings on the fly.
- IR sensors with laser-guided accuracy manage each heat zone for precise, uniform curing.
- Motion-activated sensors automatically trigger the oven when parts enter, reducing idle energy waste.
- Conveyor override system—automatically shuts off if the line stops, maximizing safety and efficiency.

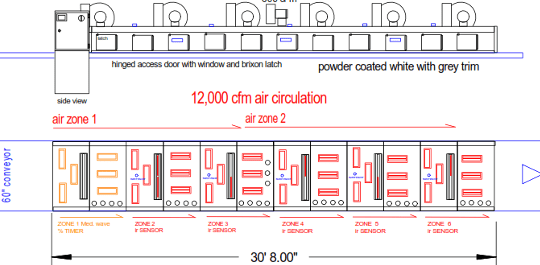

- Customizable Air & Heat Zones:
- Multiple independent air and heat zones, tailored to your specific production needs.
- VFD-controlled air zones with thermocouple-based temperature regulation for precise airflow management.
- Modular design makes it easy to expand as production demands increase—just add more sections to process faster.
- Tailor-made sizes and configurations to fit your unique workflow.
- Easy-access doors along the tunnel for quick inspections and maintenance.
- Simple system architecture reduces downtime and keeps operations running smoothly.
Prime Heat’s FlatLine Ovens are engineered for high-speed, high-precision curing, seamlessly integrating with conveyor systems to deliver consistent, energy-efficient performance. Powered by Halogen Infrared (IR) technology and advanced automation, these ovens optimize heat control, reduce energy consumption, and ensure flawless finishes—every time.
no text
no text
no text
no text
no text
no text
PRODUCT DETAILS
Advanced Halogen IR Technology for Instant, Efficient Heat:
✔️ Energy-Efficient Halogen Bulbs deliver instant heat with minimal power consumption.

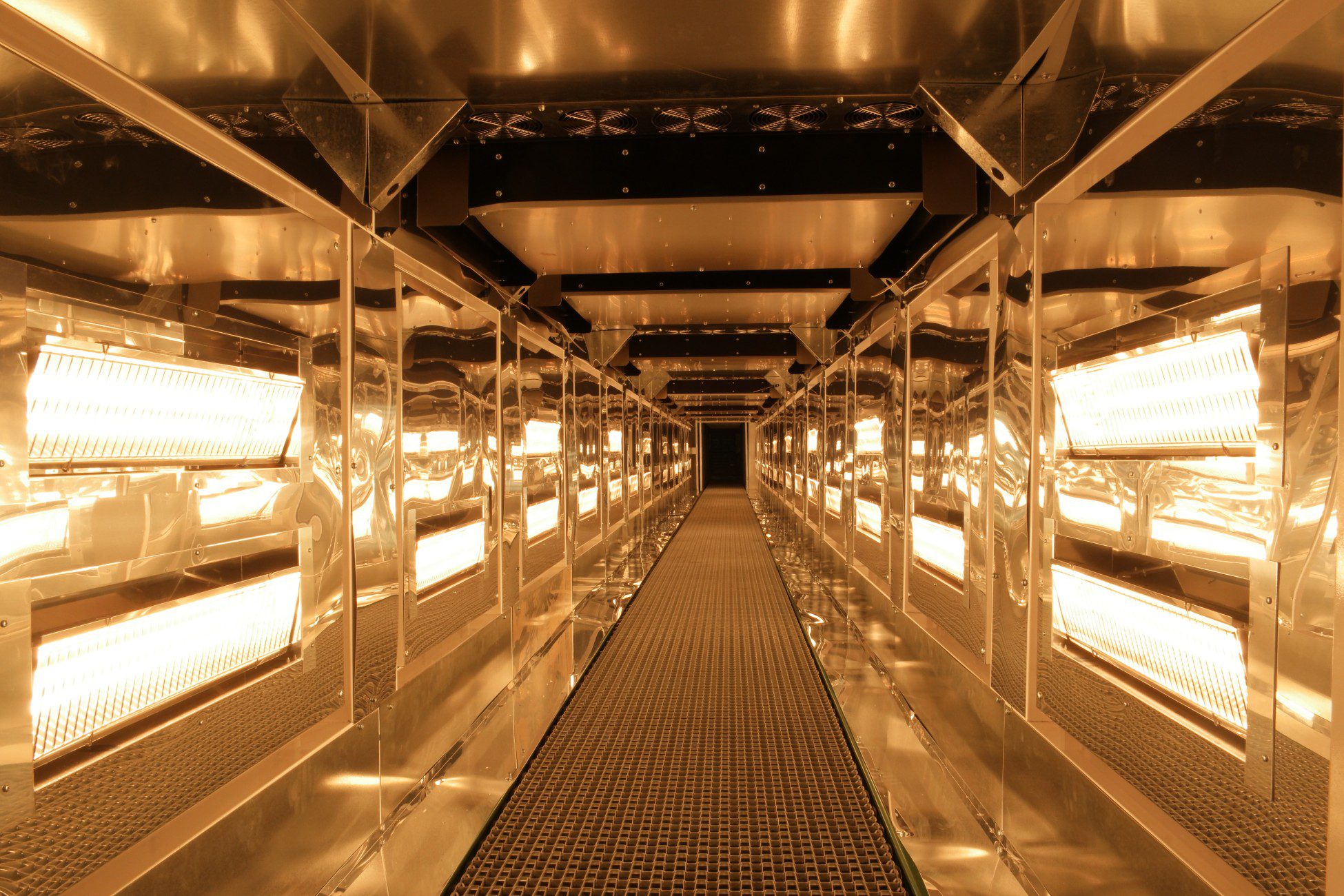

✔️ Highly reflective anodized aluminum interior walls maximize heat efficiency by reflecting IR heat back to the product.
✔️ Multiple IR wavelengths for optimized curing across different coating types.
Precision Temperature Control for Flawless Finishes:
✔️ IR sensors continuously monitor product surface temperature, maintaining precise control within ±3°F.
✔️ Digital thermostats and PLC-controlled heat zones allow for exact temperature management.
✔️ Motion-Activated Sensors automatically trigger the oven when parts enter, reducing idle energy waste.
✔️ Two-stage heat flash-off starts the curing process immediately, reducing total cycle time.
Smart Automation for Seamless Integration
✔️ Motion-activated sensors trigger the system as parts enter and automatically shut off if the conveyor stops, minimizing energy waste.
✔️ 7” Programmable Color Touchscreen PLC for intuitive control and easy adjustments.
✔️ Easily integrates into existing production lines without major modifications.
Optimized Airflow for Faster Curing
✔️ High-volume blowers circulate heated air, creating an air curtain around the product for even heat distribution.
✔️ Direct airflow over the product ensures faster, more uniform curing.
Flexible Design, Easy Maintenance
✔️ Customizable tunnel sizes based on line speed and coating requirements.
✔️ Simple System Architecture reduces downtime and keeps operations running smoothly.
